S87減速機重量：S87減速機重量100公斤，S87減速機配電機重量分別如下

S87減速機配0.75KW電機重量116公斤，S87減速機配1.1KW電機重量120公斤，S87減速機配1.5KW電機重量123公斤，S87減速機配2.2KW電機重量132公斤，S87減速機配3KW電機重量135公斤，S87減速機配4KW電機重量146公斤，S87減速機配5.5KW電機重量160公斤，S87減速機配7.5KW電機重量173公斤，S87減速機配11KW電機重量215公斤，S87減速機配15KW電機重量235公斤。自鎖減速機

S87減速機加油量：可加礦物油

S87減速機M1安裝加3.3升，S87減速機M2安裝加8.1升，S87減速機M3安裝加6.9/10.4升，S87減速機M4安裝加11.3升，S87減速機M5安裝加8.4升，S87減速機M6安裝加8.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

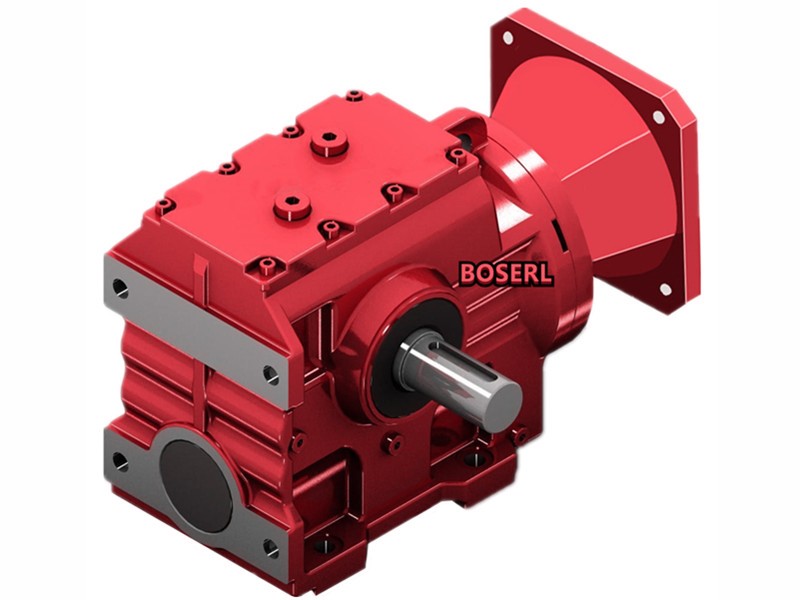

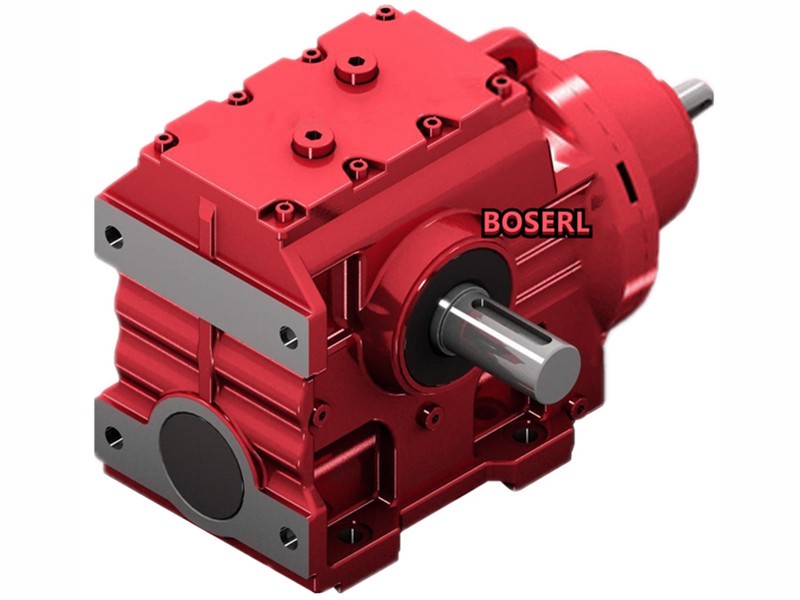

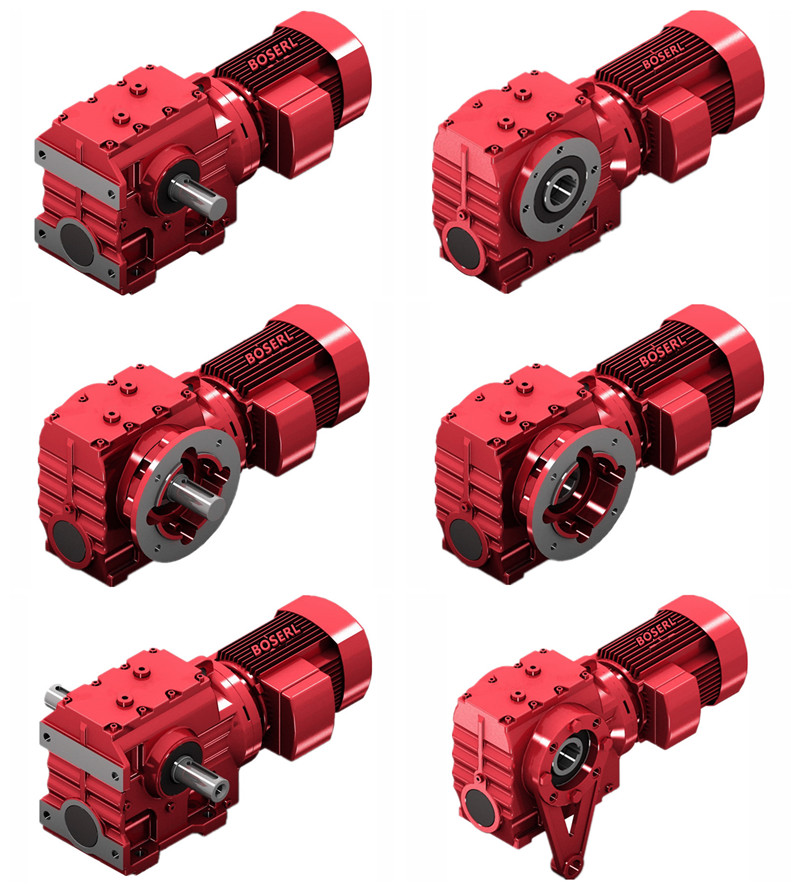

S87減速機實物圖：圖一為S87帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖二SF87具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖三為SA87臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖四為SAF87立式通孔斜齒輪減速機。

S87減速機型號表示方法：

S87減速機型號結構S87-B15KW-4P-減速比-安裝方式-接線盒位置。

S87減速機性能參數表結構說明：E編碼器，T扭力臂，K代表服務系數，F(xiàn)rame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，S87、SF87、SA87、SAF87減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。S系列減速機

S87減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

S87減速機結構圖：

S87減速機參數：

S87減速機電機可配三相/直流/變頻/剎車/防爆/伺服/交流/單相電機S87配0.75KW，S87配1.1KW，S87配1.5KW，S87配2.2KW，S87配3KW，S87配4KW，S87配5.5KW，S87配7.5KW，S87配11KW，S87配15KW。

S87減速機減速比288比，258.18比，222.4比，202.96比，180比，151.3比，139.05比，123.48比，110.4比，99.26比，91.2比，86.15比，81.76比，77.14比，70.43比，64.27比，64比，57比，47.91比，44.03比，39.1比，34.96比，31.43比，27.28比，25.5比，24.43比，21.43比，20.27比，19.7比，17.49比，15.64比，14.06比，12.21比，10.93比，9.07比，7.88比。

S87減速機輸出轉數4.9轉，5.4轉，6.3轉，6.9轉，7.8轉，9.3轉，10轉，11轉，14轉，15轉，16轉，17轉，18轉，20轉，22轉，25轉，29轉，32轉，36轉，40轉，45轉，51轉，55轉，57轉，65轉，69轉，71轉，80轉，90轉，100轉，115轉，128轉，154轉，178轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

S87減速機輸出扭矩2280N.m，2260N.m，2210N.m，2150N.m，2100N.m，2060N.m，2000N.m，1960N.m，1510N.m，1880N.m，1600N.m，1820N.m，1700N.m，1240N.m，1140N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

S87減速機尺寸圖紙：高368*寬390（帶輸出軸）*長340

S87減速機型號:

S87AQA80,S87AQA100,S87AQA115,S87AQA140,S87AQA160,S87AQA190,S87AQH80,S87AQH100,S87AQH115,S87AQH140,S87AQH160,S87AQH190,JRTS87-Y0.55KW,JRTS87-Y0.75KW,JRTS87-Y1.1KW,JRTS87-Y1.5KW,JRTS87-Y100M4,JRTS87-Y112M4,JRTS87-Y11KW,JRTS87-Y132M4,JRTS87-Y15KW,JRTS87-Y160M4,JRTS87-Y2.2KW,JRTS87-Y3KW,JRTS87-Y4KW,JRTS87-Y5.5KW,JRTS87-Y7.5KW,JRTS87-Y71M4,JRTS87-Y80M4,JRTS87-Y90M4,JRTS87-YEJ100M4,JRTS87-YEJ112M4,JRTS87-YEJ132M4,JRTS87-YEJ160M4,JRTS87-YEJ71M4,JRTS87-YEJ80M4,JRTS87-YEJ90M4,JRTS87-YS100M4,JRTS87-YS112M4,JRTS87-YS132M4,JRTS87-YS160M4,JRTS87-YS71M4,JRTS87-YS80M4,JRTS87-YS90M4,JRTS87-YVP100M4,JRTS87-YVP112M4,JRTS87-YVP132M4,JRTS87-YVP160M4,JRTS87-YVP71M4,JRTS87-YVP80M4,JRTS87-YVP90M4,JRTS87-YVPEJ100M4,JRTS87-YVPEJ112M4,JRTS87-YVPEJ132M4,JRTS87-YVPEJ160M4,JRTS87-YVPEJ71M4,JRTS87-YVPEJ80M4,JRTS87-YVPEJ90M4,EWS87-Y0.55KW,EWS87-Y0.75KW,EWS87-Y1.1KW,EWS87-Y1.5KW,EWS87-Y100M4,EWS87-Y112M4,EWS87-Y11KW,EWS87-Y132M4,EWS87-Y15KW,EWS87-Y160M4,EWS87-Y2.2KW,EWS87-Y3KW,EWS87-Y4KW,EWS87-Y5.5KW,EWS87-Y7.5KW,EWS87-Y71M4,EWS87-Y80M4,EWS87-Y90M4,EWS87-YEJ100M4,EWS87-YEJ112M4,EWS87-YEJ132M4,EWS87-YEJ160M4,EWS87-YEJ71M4,EWS87-YEJ80M4,EWS87-YEJ90M4,EWS87-YS100M4,EWS87-YS112M4,EWS87-YS132M4,EWS87-YS160M4,EWS87-YS71M4,EWS87-YS80M4,EWS87-YS90M4,EWS87-YVP100M4,EWS87-YVP112M4,EWS87-YVP132M4,EWS87-YVP160M4,EWS87-YVP71M4,EWS87-YVP80M4,EWS87-YVP90M4,EWS87-YVPEJ100M4,EWS87-YVPEJ112M4,EWS87-YVPEJ132M4,EWS87-YVPEJ160M4,EWS87-YVPEJ71M4,EWS87-YVPEJ80M4,EWS87-YVPEJ90M4,SLS87-Y0.55KW,SLS87-Y0.75KW,SLS87-Y1.1KW,SLS87-Y1.5KW,SLS87-Y100M4,SLS87-Y112M4,SLS87-Y11KW,SLS87-Y132M4,SLS87-Y15KW,SLS87-Y160M4,SLS87-Y2.2KW,SLS87-Y3KW,SLS87-Y4KW,SLS87-Y5.5KW,SLS87-Y7.5KW,SLS87-Y71M4,SLS87-Y80M4,SLS87-Y90M4,SLS87-YEJ100M4,SLS87-YEJ112M4,SLS87-YEJ132M4,SLS87-YEJ160M4,SLS87-YEJ71M4,SLS87-YEJ80M4,SLS87-YEJ90M4,SLS87-YS100M4,SLS87-YS112M4,SLS87-YS132M4,SLS87-YS160M4,SLS87-YS71M4,SLS87-YS80M4,SLS87-YS90M4,SLS87-YVP100M4,SLS87-YVP112M4,SLS87-YVP132M4,SLS87-YVP160M4,SLS87-YVP71M4,SLS87-YVP80M4,SLS87-YVP90M4,SLS87-YVPEJ100M4,SLS87-YVPEJ112M4,SLS87-YVPEJ132M4,SLS87-YVPEJ160M4,SLS87-YVPEJ71M4,SLS87-YVPEJ80M4,SLS87-YVPEJ90M4,DSZS87-Y0.55KW,DSZS87-Y0.75KW,DSZS87-Y1.1KW,DSZS87-Y1.5KW,DSZS87-Y100M4,DSZS87-Y112M4,DSZS87-Y11KW,DSZS87-Y132M4,DSZS87-Y15KW,DSZS87-Y160M4,DSZS87-Y2.2KW,DSZS87-Y3KW,DSZS87-Y4KW,DSZS87-Y5.5KW,DSZS87-Y7.5KW,DSZS87-Y71M4,DSZS87-Y80M4,DSZS87-Y90M4,DSZS87-YEJ100M4,DSZS87-YEJ112M4,DSZS87-YEJ132M4,DSZS87-YEJ160M4,DSZS87-YEJ71M4,DSZS87-YEJ80M4,DSZS87-YEJ90M4,DSZS87-YS100M4,DSZS87-YS112M4,DSZS87-YS132M4,DSZS87-YS160M4,DSZS87-YS71M4,DSZS87-YS80M4,DSZS87-YS90M4,DSZS87-YVP100M4,DSZS87-YVP112M4,DSZS87-YVP132M4,DSZS87-YVP160M4,DSZS87-YVP71M4,DSZS87-YVP80M4,DSZS87-YVP90M4,DSZS87-YVPEJ100M4,DSZS87-YVPEJ112M4,DSZS87-YVPEJ132M4,DSZS87-YVPEJ160M4,DSZS87-YVPEJ71M4,DSZS87-YVPEJ80M4,DSZS87-YVPEJ90M4,BS87-Y0.55KW,BS87-Y0.75KW,BS87-Y1.1KW,BS87-Y1.5KW,BS87-Y100M4,BS87-Y112M4,BS87-Y11KW,BS87-Y132M4,BS87-Y15KW,BS87-Y160M4,BS87-Y2.2KW,BS87-Y3KW,BS87-Y4KW,BS87-Y5.5KW,BS87-Y7.5KW,BS87-Y71M4,BS87-Y80M4,BS87-Y90M4,BS87-YEJ100M4,BS87-YEJ112M4,BS87-YEJ132M4,BS87-YEJ160M4,BS87-YEJ71M4,BS87-YEJ80M4,BS87-YEJ90M4,BS87-YS100M4,BS87-YS112M4,BS87-YS132M4,BS87-YS160M4,BS87-YS71M4,BS87-YS80M4,BS87-YS90M4,BS87-YVP100M4,BS87-YVP112M4,BS87-YVP132M4,BS87-YVP160M4,BS87-YVP71M4,BS87-YVP80M4,BS87-YVP90M4,BS87-YVPEJ100M4,BS87-YVPEJ112M4,BS87-YVPEJ132M4,BS87-YVPEJ160M4,BS87-YVPEJ71M4,BS87-YVPEJ80M4,BS87-YVPEJ90M4,GS87-Y0.55KW,GS87-Y0.75KW,GS87-Y1.1KW,GS87-Y1.5KW,GS87-Y100M4,GS87-Y112M4,GS87-Y11KW,GS87-Y132M4,GS87-Y15KW,GS87-Y160M4,GS87-Y2.2KW,GS87-Y3KW,GS87-Y4KW,GS87-Y5.5KW,GS87-Y7.5KW,GS87-Y71M4,GS87-Y80M4,GS87-Y90M4,GS87-YEJ100M4,GS87-YEJ112M4,GS87-YEJ132M4,GS87-YEJ160M4,GS87-YEJ71M4,GS87-YEJ80M4,GS87-YEJ90M4,GS87-YS100M4,GS87-YS112M4,GS87-YS132M4,GS87-YS160M4,GS87-YS71M4,GS87-YS80M4,GS87-YS90M4,GS87-YVP100M4,GS87-YVP112M4,GS87-YVP132M4,GS87-YVP160M4,GS87-YVP71M4,GS87-YVP80M4,GS87-YVP90M4,GS87-YVPEJ100M4,GS87-YVPEJ112M4,GS87-YVPEJ132M4,GS87-YVPEJ160M4,GS87-YVPEJ71M4,GS87-YVPEJ80M4,GS87-YVPEJ90M4,SC87-Y0.55KW,SC87-Y0.75KW,SC87-Y1.1KW,SC87-Y1.5KW,SC87-Y100M4,SC87-Y112M4,SC87-Y11KW,SC87-Y132M4,SC87-Y15KW,SC87-Y160M4,SC87-Y2.2KW,SC87-Y3KW,SC87-Y4KW,SC87-Y5.5KW,SC87-Y7.5KW,SC87-Y71M4,SC87-Y80M4,SC87-Y90M4,SC87-YEJ100M4,SC87-YEJ112M4,SC87-YEJ132M4,SC87-YEJ160M4,SC87-YEJ71M4,SC87-YEJ80M4,SC87-YEJ90M4,SC87-YS100M4,SC87-YS112M4,SC87-YS132M4,SC87-YS160M4,SC87-YS71M4,SC87-YS80M4,SC87-YS90M4,SC87-YVP100M4,SC87-YVP112M4,SC87-YVP132M4,SC87-YVP160M4,SC87-YVP71M4,SC87-YVP80M4,SC87-YVP90M4,SC87-YVPEJ100M4,SC87-YVPEJ112M4,SC87-YVPEJ132M4,SC87-YVPEJ160M4,SC87-YVPEJ71M4,SC87-YVPEJ80M4,SC87-YVPEJ90M4,MTN87-Y0.55KW,MTN87-Y0.75KW,MTN87-Y1.1KW,MTN87-Y1.5KW,MTN87-Y100M4,MTN87-Y112M4,MTN87-Y11KW,MTN87-Y132M4,MTN87-Y15KW,MTN87-Y160M4,MTN87-Y2.2KW,MTN87-Y3KW,MTN87-Y4KW,MTN87-Y5.5KW,MTN87-Y7.5KW,MTN87-Y71M4,MTN87-Y80M4,MTN87-Y90M4,MTN87-YEJ100M4,MTN87-YEJ112M4,MTN87-YEJ132M4,MTN87-YEJ160M4,MTN87-YEJ71M4,MTN87-YEJ80M4,MTN87-YEJ90M4,MTN87-YS100M4,MTN87-YS112M4,MTN87-YS132M4,MTN87-YS160M4,MTN87-YS71M4,MTN87-YS80M4,MTN87-YS90M4,MTN87-YVP100M4,MTN87-YVP112M4,MTN87-YVP132M4,MTN87-YVP160M4,MTN87-YVP71M4,MTN87-YVP80M4,MTN87-YVP90M4,MTN87-YVPEJ100M4,MTN87-YVPEJ112M4,MTN87-YVPEJ132M4,MTN87-YVPEJ160M4,MTN87-YVPEJ71M4,MTN87-YVPEJ80M4,MTN87-YVPEJ90M4,WXS87-WSS0.55KW,WXS87-WSS0.75KW,WXS87-WSS1.1KW,WXS87-WSS1.5KW,WXS87-WSS100M4,WXS87-WSS112M4,WXS87-WSS11KW,WXS87-WSS132M4,WXS87-WSS15KW,WXS87-WSS160M4,WXS87-WSS2.2KW,WXS87-WSS3KW,WXS87-WSS4KW,WXS87-WSS5.5KW,WXS87-WSS7.5KW,WXS87-WSS71M4,WXS87-WSS80M4,WXS87-WSS90M4,WXS87-WSSB100M4,WXS87-WSSB112M4,WXS87-WSSB132M4,WXS87-WSSB160M4,WXS87-WSSB71M4,WXS87-WSSB80M4,WXS87-WSSB90M4,WXS87-WSSVP100M4,WXS87-WSSVP112M4,WXS87-WSSVP132M4,WXS87-WSSVP160M4,WXS87-WSSVP71M4,WXS87-WSSVP80M4,WXS87-WSSVP90M4,WXS87-WSSVPB100M4,WXS87-WSSVPB112M4,WXS87-WSSVPB132M4,WXS87-WSSVPB160M4,WXS87-WSSVPB71M4,WXS87-WSSVPB80M4,WXS87-WSSVPB90M4。
