R137減速機重量：R137減速機重量220Kg，R137減速機配電機重量分別如下：

R137減速機配5.5KW電機重量280Kg,R137減速機配7.5KW電機重量293Kg,R137減速機配11KW電機重量335Kg,R137減速機配15KW電機重量355Kg,R137減速機配18.5KW電機重量392Kg,R137減速機配22KW電機重量405Kg,R137減速機配30KW電機重量473Kg,R137減速機配37KW電機重量520Kg,R137減速機配45KW電機重量555Kg,R137減速機配55KW電機重量640Kg。同軸減速機

R137減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R137減速機M1安裝加10/25升，R137減速機M2安裝加28升，R137減速機M3安裝加29.5升，R137減速機M4安裝加31.5升，R137減速機M5安裝加25升，R137減速機M6安裝加25升。

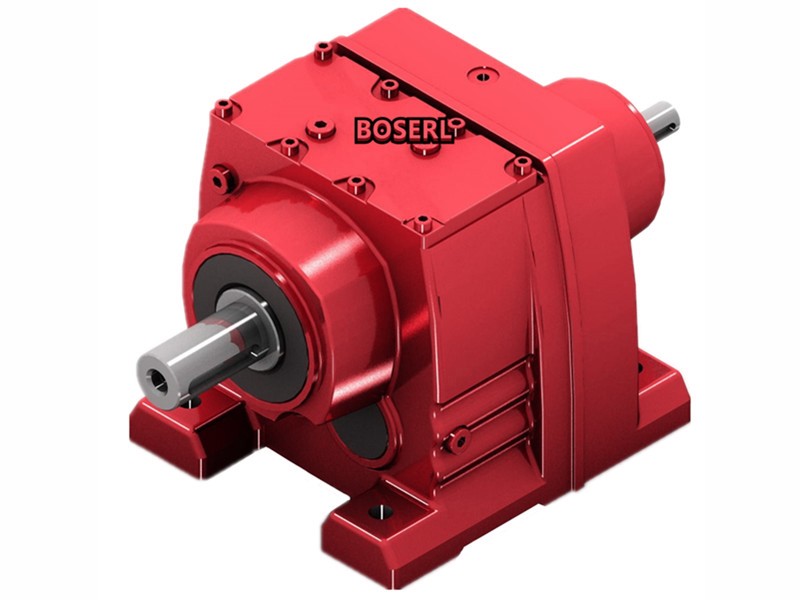

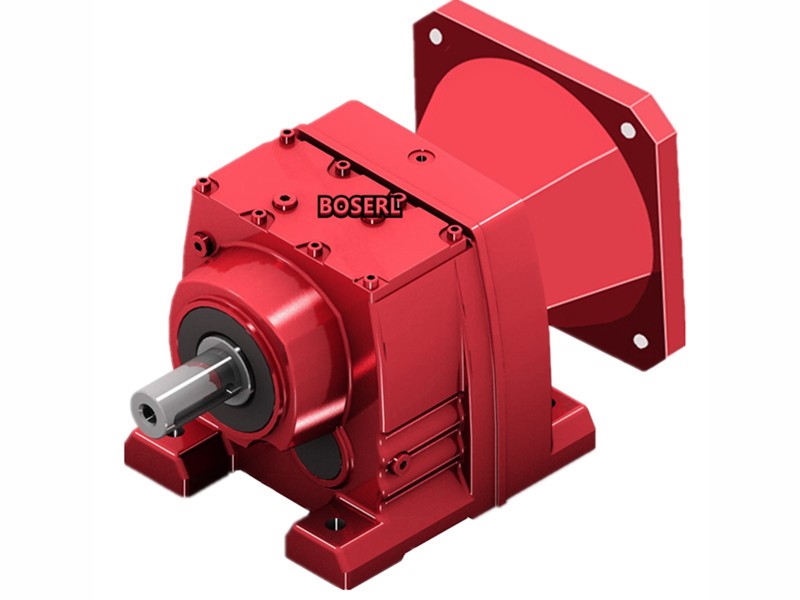

R137減速機實物圖：圖一為R137底腳安裝斜齒輪減速機，圖二RF137法蘭立式安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

R137減速機型號表示方法：

R137減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R137減速機型號結構R137-B55KW-4P-減速比-安裝方式-接線盒位置。

R137減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R137減速機結構圖：

R137減速機參數：R系列減速機

R137減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R137配5.5KW,R137配7.5KW,R137配11KW,R137配15KW,R137配18.5KW,R137配22KW,R137配30KW,R137配37KW,R137配45KW,R137配55KW。

R137減速機減速比5.15比,6.38比,7.59比,8.71比,10.79比,12.83比,14.51比,16.8比,19.04比,22比,24.12比,27.83比,29.57比,32.91比,37.65比,44.39比,50.86比,59.17比,65.2比,73.49比,80.91比,88.7比,103.72比,113.72比,128.18比,141.12比,156.31比,174.4比,188.45比,222.6比。

R137減速機輸出轉速6.3轉,7.4轉,8轉,9轉,9.9轉,11轉,12轉,14轉,16轉,17轉,19轉,21轉,24轉,28轉,32轉,37轉,43轉,47轉,50轉,58轉,64轉,74轉,83轉,96轉,109轉,130轉,161轉,184轉,219轉,272轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R137減速機負載扭矩4600N.m,5110N.m,7680N.m,7780N.m,7840N.m,8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R137減速機尺寸圖紙：高495*寬450*長589（帶輸出軸）齒輪減速機

R137減速機型號：R137AQA80,R137AQA100,R137AQA115,R137AQA140,R137AQA160,R137AQA190,R137AQH80,R137AQH100,R137AQH115,R137AQH140,R137AQH160,R137AQH190,JRTR137-Y112M4,JRTR137-Y11KW,JRTR137-Y132M4,JRTR137-Y15KW,JRTR137-Y160M4,JRTR137-Y18.5KW,JRTR137-Y180M4,JRTR137-Y200M4,JRTR137-Y225M4,JRTR137-Y22KW,JRTR137-Y250M4,JRTR137-Y30KW,JRTR137-Y37KW,JRTR137-Y45KW,JRTR137-Y4KW,JRTR137-Y5.5KW,JRTR137-Y55KW,JRTR137-Y7.5KW,JRTR137-YEJ112M4,JRTR137-YEJ132M4,JRTR137-YEJ160M4,JRTR137-YEJ180M4,JRTR137-YEJ200M4,JRTR137-YEJ225M4,JRTR137-YEJ250M4,JRTR137-YS112M4,JRTR137-YS132M4,JRTR137-YS160M4,JRTR137-YS180M4,JRTR137-YS200M4,JRTR137-YS225M4,JRTR137-YS250M4,JRTR137-YVP112M4,JRTR137-YVP132M4,JRTR137-YVP160M4,JRTR137-YVP180M4,JRTR137-YVP200M4,JRTR137-YVP225M4,JRTR137-YVP250M4,JRTR137-YVPEJ112M4,JRTR137-YVPEJ132M4,JRTR137-YVPEJ160M4,JRTR137-YVPEJ180M4,JRTR137-YVPEJ200M4,JRTR137-YVPEJ225M4,JRTR137-YVPEJ250M4,EWR137-Y112M4,EWR137-Y11KW,EWR137-Y132M4,EWR137-Y15KW,EWR137-Y160M4,EWR137-Y18.5KW,EWR137-Y180M4,EWR137-Y200M4,EWR137-Y225M4,EWR137-Y22KW,EWR137-Y250M4,EWR137-Y30KW,EWR137-Y37KW,EWR137-Y45KW,EWR137-Y4KW,EWR137-Y5.5KW,EWR137-Y55KW,EWR137-Y7.5KW,EWR137-YEJ112M4,EWR137-YEJ132M4,EWR137-YEJ160M4,EWR137-YEJ180M4,EWR137-YEJ200M4,EWR137-YEJ225M4,EWR137-YEJ250M4,EWR137-YS112M4,EWR137-YS132M4,EWR137-YS160M4,EWR137-YS180M4,EWR137-YS200M4,EWR137-YS225M4,EWR137-YS250M4,EWR137-YVP112M4,EWR137-YVP132M4,EWR137-YVP160M4,EWR137-YVP180M4,EWR137-YVP200M4,EWR137-YVP225M4,EWR137-YVP250M4,EWR137-YVPEJ112M4,EWR137-YVPEJ132M4,EWR137-YVPEJ160M4,EWR137-YVPEJ180M4,EWR137-YVPEJ200M4,EWR137-YVPEJ225M4,EWR137-YVPEJ250M4,SLR137-Y112M4,SLR137-Y11KW,SLR137-Y132M4,SLR137-Y15KW,SLR137-Y160M4,SLR137-Y18.5KW,SLR137-Y180M4,SLR137-Y200M4,SLR137-Y225M4,SLR137-Y22KW,SLR137-Y250M4,SLR137-Y30KW,SLR137-Y37KW,SLR137-Y45KW,SLR137-Y4KW,SLR137-Y5.5KW,SLR137-Y55KW,SLR137-Y7.5KW,SLR137-YEJ112M4,SLR137-YEJ132M4,SLR137-YEJ160M4,SLR137-YEJ180M4,SLR137-YEJ200M4,SLR137-YEJ225M4,SLR137-YEJ250M4,SLR137-YS112M4,SLR137-YS132M4,SLR137-YS160M4,SLR137-YS180M4,SLR137-YS200M4,SLR137-YS225M4,SLR137-YS250M4,SLR137-YVP112M4,SLR137-YVP132M4,SLR137-YVP160M4,SLR137-YVP180M4,SLR137-YVP200M4,SLR137-YVP225M4,SLR137-YVP250M4,SLR137-YVPEJ112M4,SLR137-YVPEJ132M4,SLR137-YVPEJ160M4,SLR137-YVPEJ180M4,SLR137-YVPEJ200M4,SLR137-YVPEJ225M4,SLR137-YVPEJ250M4,DSZR137-Y112M4,DSZR137-Y11KW,DSZR137-Y132M4,DSZR137-Y15KW,DSZR137-Y160M4,DSZR137-Y18.5KW,DSZR137-Y180M4,DSZR137-Y200M4,DSZR137-Y225M4,DSZR137-Y22KW,DSZR137-Y250M4,DSZR137-Y30KW,DSZR137-Y37KW,DSZR137-Y45KW,DSZR137-Y4KW,DSZR137-Y5.5KW,DSZR137-Y55KW,DSZR137-Y7.5KW,DSZR137-YEJ112M4,DSZR137-YEJ132M4,DSZR137-YEJ160M4,DSZR137-YEJ180M4,DSZR137-YEJ200M4,DSZR137-YEJ225M4,DSZR137-YEJ250M4,DSZR137-YS112M4,DSZR137-YS132M4,DSZR137-YS160M4,DSZR137-YS180M4,DSZR137-YS200M4,DSZR137-YS225M4,DSZR137-YS250M4,DSZR137-YVP112M4,DSZR137-YVP132M4,DSZR137-YVP160M4,DSZR137-YVP180M4,DSZR137-YVP200M4,DSZR137-YVP225M4,DSZR137-YVP250M4,DSZR137-YVPEJ112M4,DSZR137-YVPEJ132M4,DSZR137-YVPEJ160M4,DSZR137-YVPEJ180M4,DSZR137-YVPEJ200M4,DSZR137-YVPEJ225M4,DSZR137-YVPEJ250M4,BR137-Y112M4,BR137-Y11KW,BR137-Y132M4,BR137-Y15KW,BR137-Y160M4,BR137-Y18.5KW,BR137-Y180M4,BR137-Y200M4,BR137-Y225M4,BR137-Y22KW,BR137-Y250M4,BR137-Y30KW,BR137-Y37KW,BR137-Y45KW,BR137-Y4KW,BR137-Y5.5KW,BR137-Y55KW,BR137-Y7.5KW,BR137-YEJ112M4,BR137-YEJ132M4,BR137-YEJ160M4,BR137-YEJ180M4,BR137-YEJ200M4,BR137-YEJ225M4,BR137-YEJ250M4,BR137-YS112M4,BR137-YS132M4,BR137-YS160M4,BR137-YS180M4,BR137-YS200M4,BR137-YS225M4,BR137-YS250M4,BR137-YVP112M4,BR137-YVP132M4,BR137-YVP160M4,BR137-YVP180M4,BR137-YVP200M4,BR137-YVP225M4,BR137-YVP250M4,BR137-YVPEJ112M4,BR137-YVPEJ132M4,BR137-YVPEJ160M4,BR137-YVPEJ180M4,BR137-YVPEJ200M4,BR137-YVPEJ225M4,BR137-YVPEJ250M4,GR137-Y112M4,GR137-Y11KW,GR137-Y132M4,GR137-Y15KW,GR137-Y160M4,GR137-Y18.5KW,GR137-Y180M4,GR137-Y200M4,GR137-Y225M4,GR137-Y22KW,GR137-Y250M4,GR137-Y30KW,GR137-Y37KW,GR137-Y45KW,GR137-Y4KW,GR137-Y5.5KW,GR137-Y55KW,GR137-Y7.5KW,GR137-YEJ112M4,GR137-YEJ132M4,GR137-YEJ160M4,GR137-YEJ180M4,GR137-YEJ200M4,GR137-YEJ225M4,GR137-YEJ250M4,GR137-YS112M4,GR137-YS132M4,GR137-YS160M4,GR137-YS180M4,GR137-YS200M4,GR137-YS225M4,GR137-YS250M4,GR137-YVP112M4,GR137-YVP132M4,GR137-YVP160M4,GR137-YVP180M4,GR137-YVP200M4,GR137-YVP225M4,GR137-YVP250M4,GR137-YVPEJ112M4,GR137-YVPEJ132M4,GR137-YVPEJ160M4,GR137-YVPEJ180M4,GR137-YVPEJ200M4,GR137-YVPEJ225M4,GR137-YVPEJ250M4,RC137-Y112M4,RC137-Y11KW,RC137-Y132M4,RC137-Y15KW,RC137-Y160M4,RC137-Y18.5KW,RC137-Y180M4,RC137-Y200M4,RC137-Y225M4,RC137-Y22KW,RC137-Y250M4,RC137-Y30KW,RC137-Y37KW,RC137-Y45KW,RC137-Y4KW,RC137-Y5.5KW,RC137-Y55KW,RC137-Y7.5KW,RC137-YEJ112M4,RC137-YEJ132M4,RC137-YEJ160M4,RC137-YEJ180M4,RC137-YEJ200M4,RC137-YEJ225M4,RC137-YEJ250M4,RC137-YS112M4,RC137-YS132M4,RC137-YS160M4,RC137-YS180M4,RC137-YS200M4,RC137-YS225M4,RC137-YS250M4,RC137-YVP112M4,RC137-YVP132M4,RC137-YVP160M4,RC137-YVP180M4,RC137-YVP200M4,RC137-YVP225M4,RC137-YVP250M4,RC137-YVPEJ112M4,RC137-YVPEJ132M4,RC137-YVPEJ160M4,RC137-YVPEJ180M4,RC137-YVPEJ200M4,RC137-YVPEJ225M4,RC137-YVPEJ250M4,MTD137-Y112M4,MTD137-Y11KW,MTD137-Y132M4,MTD137-Y15KW,MTD137-Y160M4,MTD137-Y18.5KW,MTD137-Y180M4,MTD137-Y200M4,MTD137-Y225M4,MTD137-Y22KW,MTD137-Y250M4,MTD137-Y30KW,MTD137-Y37KW,MTD137-Y45KW,MTD137-Y4KW,MTD137-Y5.5KW,MTD137-Y55KW,MTD137-Y7.5KW,MTD137-YEJ112M4,MTD137-YEJ132M4,MTD137-YEJ160M4,MTD137-YEJ180M4,MTD137-YEJ200M4,MTD137-YEJ225M4,MTD137-YEJ250M4,MTD137-YS112M4,MTD137-YS132M4,MTD137-YS160M4,MTD137-YS180M4,MTD137-YS200M4,MTD137-YS225M4,MTD137-YS250M4,MTD137-YVP112M4,MTD137-YVP132M4,MTD137-YVP160M4,MTD137-YVP180M4,MTD137-YVP200M4,MTD137-YVP225M4,MTD137-YVP250M4,MTD137-YVPEJ112M4,MTD137-YVPEJ132M4,MTD137-YVPEJ160M4,MTD137-YVPEJ180M4,MTD137-YVPEJ200M4,MTD137-YVPEJ225M4,MTD137-YVPEJ250M4,WXR137-WSS112M4,WXR137-WSS11KW,WXR137-WSS132M4,WXR137-WSS15KW,WXR137-WSS160M4,WXR137-WSS18.5KW,WXR137-WSS180M4,WXR137-WSS200M4,WXR137-WSS225M4,WXR137-WSS22KW,WXR137-WSS250M4,WXR137-WSS30KW,WXR137-WSS37KW,WXR137-WSS45KW,WXR137-WSS4KW,WXR137-WSS5.5KW,WXR137-WSS55KW,WXR137-WSS7.5KW,WXR137-WSSB112M4,WXR137-WSSB132M4,WXR137-WSSB160M4,WXR137-WSSB180M4,WXR137-WSSB200M4,WXR137-WSSB225M4,WXR137-WSSB250M4,WXR137-WSSVP112M4,WXR137-WSSVP132M4,WXR137-WSSVP160M4,WXR137-WSSVP180M4,WXR137-WSSVP200M4,WXR137-WSSVP225M4,WXR137-WSSVP250M4,WXR137-WSSVPB112M4,WXR137-WSSVPB132M4,WXR137-WSSVPB160M4,WXR137-WSSVPB180M4,WXR137-WSSVPB200M4,WXR137-WSSVPB225M4,WXR137-WSSVPB250M4。

R137減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.78777p.com/product/list-rxiliejiansuji-cn.html
