KF127減速機重量：KF127減速機重量382公斤，KF127減速機帶電機重量分別如下

KF127減速機帶5.5KW電機重量442公斤，KF127減速機帶7.5KW電機重量455公斤，KF127減速機帶11KW電機重量497公斤，KF127減速機帶15KW電機重量517公斤，KF127減速機帶18.5KW電機重量554公斤，KF127減速機帶22KW電機重量567公斤，KF127減速機帶30KW電機重量635公斤，KF127減速機帶37KW電機重量682公斤，KF127減速機帶45KW電機重量717公斤，KF127減速機帶55KW電機重量802公斤，KF127減速機帶75KW電機重量910公斤，KF127減速機帶90KW電機重量1050公斤。

KF127減速機加油量：可加合成油

KF127減速機M2方式安裝加41.5升，KF127減速機M1方式安裝加21升，KF127減速機M3方式安裝加46升，KF127減速機M4方式安裝加55升，KF127減速機M5方式安裝加41升，KF127減速機M6方式安裝加41升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

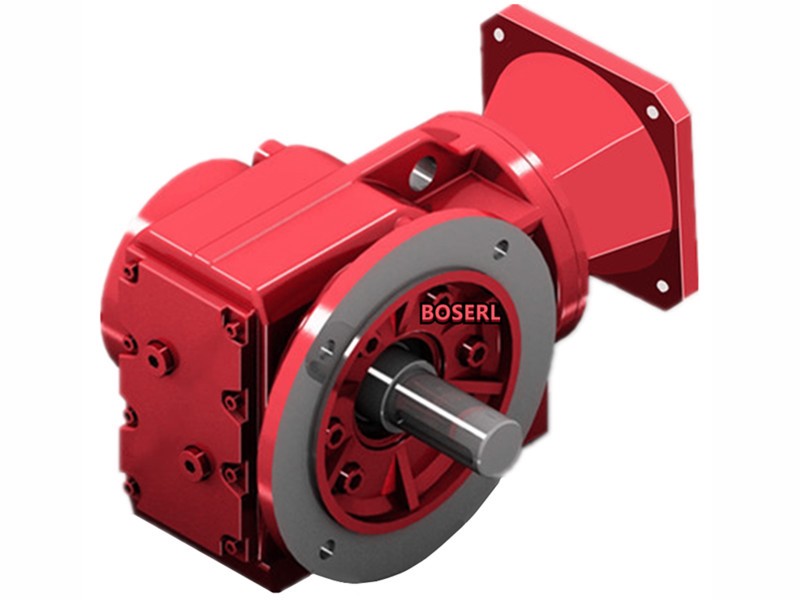

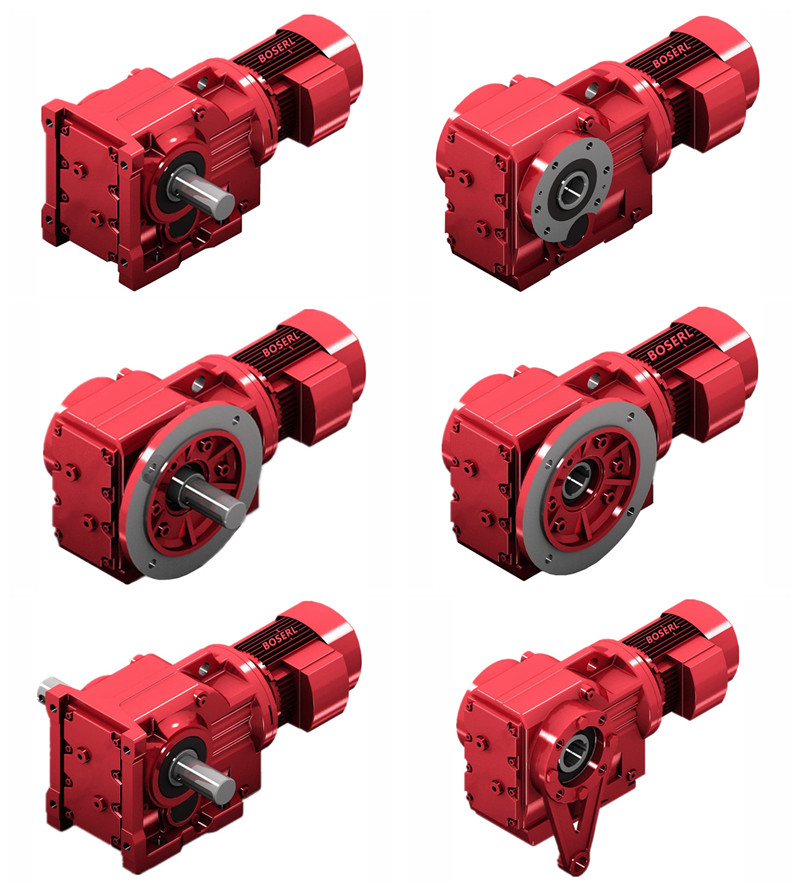

KF127減速機實物圖：圖一為KF127立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K127臥式方式安裝螺旋錐齒輪減速電機，圖三為KA127臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF127立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF127減速機型號表示方法：

KF127減速機型號結構KF127-B75KW-4P-減速比-方式安裝方式-接線盒位置。

KF127減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF127、K127、KA127、KAF127減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF127減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KF127減速機參數：

KF127減速機輸出轉數9.6轉，10轉，11轉，13轉，16轉，17轉，20轉，22轉，26轉，29轉，35轉，39轉，45轉，51轉，59轉，66轉，79轉，98轉，109轉，130轉，161轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）直角減速機

KF127減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KF127帶5.5KW，KF127帶7.5KW，KF127帶11KW，KF127帶15KW，KF127帶18.5KW，KF127帶22KW，KF127帶30KW，KF127帶37KW，KF127帶45KW，KF127帶55KW，KF127帶75KW，KF127帶90KW。

KF127減速機輸出扭矩13000N.m，12100N.m，8530N.m，8000N.m，7230N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KF127減速機減速比146.07比，136.14比，122.48比，110.18比，89.89比，81.98比，70.95比，62.60比，54.07比，47.82比，40.19比，36.25比，31.37比，27.68比，23.91比，21.15比，17.77比，14.35比，12.79比，10.74比，8.68比。

KF127減速機外形尺寸：輸出軸直徑Φ110（可定做）+鍵6，高592*寬666（帶輸出軸）*長615

KF127減速機型號：KF127AQA80,KF127AQA100,KF127AQA115,KF127AQA140,KF127AQA160,KF127AQA190,KF127AQH80,KF127AQH100,KF127AQH115,KF127AQH140,KF127AQH160,KF127AQH190,JRTKF127-Y112M4,JRTKF127-Y11KW,JRTKF127-Y132M4,JRTKF127-Y15KW,JRTKF127-Y160M4,JRTKF127-Y18.5KW,JRTKF127-Y180M4,JRTKF127-Y200M4,JRTKF127-Y225M4,JRTKF127-Y22KW,JRTKF127-Y250M4,JRTKF127-Y280M4,JRTKF127-Y30KW,JRTKF127-Y37KW,JRTKF127-Y45KW,JRTKF127-Y4KW,JRTKF127-Y5.5KW,JRTKF127-Y55KW,JRTKF127-Y7.5KW,JRTKF127-Y75KW,JRTKF127-YEJ112M4,JRTKF127-YEJ132M4,JRTKF127-YEJ160M4,JRTKF127-YEJ180M4,JRTKF127-YEJ200M4,JRTKF127-YEJ225M4,JRTKF127-YEJ250M4,JRTKF127-YEJ280M4,JRTKF127-YS112M4,JRTKF127-YS132M4,JRTKF127-YS160M4,JRTKF127-YS180M4,JRTKF127-YS200M4,JRTKF127-YS225M4,JRTKF127-YS250M4,JRTKF127-YS280M4,JRTKF127-YVP112M4,JRTKF127-YVP132M4,JRTKF127-YVP160M4,JRTKF127-YVP180M4,JRTKF127-YVP200M4,JRTKF127-YVP225M4,JRTKF127-YVP250M4,JRTKF127-YVP280M4,JRTKF127-YVPEJ112M4,JRTKF127-YVPEJ132M4,JRTKF127-YVPEJ160M4,JRTKF127-YVPEJ180M4,JRTKF127-YVPEJ200M4,JRTKF127-YVPEJ225M4,JRTKF127-YVPEJ250M4,JRTKF127-YVPEJ280M4,EWKF127-Y112M4,EWKF127-Y11KW,EWKF127-Y132M4,EWKF127-Y15KW,EWKF127-Y160M4,EWKF127-Y18.5KW,EWKF127-Y180M4,EWKF127-Y200M4,EWKF127-Y225M4,EWKF127-Y22KW,EWKF127-Y250M4,EWKF127-Y280M4,EWKF127-Y30KW,EWKF127-Y37KW,EWKF127-Y45KW,EWKF127-Y4KW,EWKF127-Y5.5KW,EWKF127-Y55KW,EWKF127-Y7.5KW,EWKF127-Y75KW,EWKF127-YEJ112M4,EWKF127-YEJ132M4,EWKF127-YEJ160M4,EWKF127-YEJ180M4,EWKF127-YEJ200M4,EWKF127-YEJ225M4,EWKF127-YEJ250M4,EWKF127-YEJ280M4,EWKF127-YS112M4,EWKF127-YS132M4,EWKF127-YS160M4,EWKF127-YS180M4,EWKF127-YS200M4,EWKF127-YS225M4,EWKF127-YS250M4,EWKF127-YS280M4,EWKF127-YVP112M4,EWKF127-YVP132M4,EWKF127-YVP160M4,EWKF127-YVP180M4,EWKF127-YVP200M4,EWKF127-YVP225M4,EWKF127-YVP250M4,EWKF127-YVP280M4,EWKF127-YVPEJ112M4,EWKF127-YVPEJ132M4,EWKF127-YVPEJ160M4,EWKF127-YVPEJ180M4,EWKF127-YVPEJ200M4,EWKF127-YVPEJ225M4,EWKF127-YVPEJ250M4,EWKF127-YVPEJ280M4,SLKF127-Y112M4,SLKF127-Y11KW,SLKF127-Y132M4,SLKF127-Y15KW,SLKF127-Y160M4,SLKF127-Y18.5KW,SLKF127-Y180M4,SLKF127-Y200M4,SLKF127-Y225M4,SLKF127-Y22KW,SLKF127-Y250M4,SLKF127-Y280M4,SLKF127-Y30KW,SLKF127-Y37KW,SLKF127-Y45KW,SLKF127-Y4KW,SLKF127-Y5.5KW,SLKF127-Y55KW,SLKF127-Y7.5KW,SLKF127-Y75KW,SLKF127-YEJ112M4,SLKF127-YEJ132M4,SLKF127-YEJ160M4,SLKF127-YEJ180M4,SLKF127-YEJ200M4,SLKF127-YEJ225M4,SLKF127-YEJ250M4,SLKF127-YEJ280M4,SLKF127-YS112M4,SLKF127-YS132M4,SLKF127-YS160M4,SLKF127-YS180M4,SLKF127-YS200M4,SLKF127-YS225M4,SLKF127-YS250M4,SLKF127-YS280M4,SLKF127-YVP112M4,SLKF127-YVP132M4,SLKF127-YVP160M4,SLKF127-YVP180M4,SLKF127-YVP200M4,SLKF127-YVP225M4,SLKF127-YVP250M4,SLKF127-YVP280M4,SLKF127-YVPEJ112M4,SLKF127-YVPEJ132M4,SLKF127-YVPEJ160M4,SLKF127-YVPEJ180M4,SLKF127-YVPEJ200M4,SLKF127-YVPEJ225M4,SLKF127-YVPEJ250M4,SLKF127-YVPEJ280M4,DSZKF127-Y112M4,DSZKF127-Y11KW,DSZKF127-Y132M4,DSZKF127-Y15KW,DSZKF127-Y160M4,DSZKF127-Y18.5KW,DSZKF127-Y180M4,DSZKF127-Y200M4,DSZKF127-Y225M4,DSZKF127-Y22KW,DSZKF127-Y250M4,DSZKF127-Y280M4,DSZKF127-Y30KW,DSZKF127-Y37KW,DSZKF127-Y45KW,DSZKF127-Y4KW,DSZKF127-Y5.5KW,DSZKF127-Y55KW,DSZKF127-Y7.5KW,DSZKF127-Y75KW,DSZKF127-YEJ112M4,DSZKF127-YEJ132M4,DSZKF127-YEJ160M4,DSZKF127-YEJ180M4,DSZKF127-YEJ200M4,DSZKF127-YEJ225M4,DSZKF127-YEJ250M4,DSZKF127-YEJ280M4,DSZKF127-YS112M4,DSZKF127-YS132M4,DSZKF127-YS160M4,DSZKF127-YS180M4,DSZKF127-YS200M4,DSZKF127-YS225M4,DSZKF127-YS250M4,DSZKF127-YS280M4,DSZKF127-YVP112M4,DSZKF127-YVP132M4,DSZKF127-YVP160M4,DSZKF127-YVP180M4,DSZKF127-YVP200M4,DSZKF127-YVP225M4,DSZKF127-YVP250M4,DSZKF127-YVP280M4,DSZKF127-YVPEJ112M4,DSZKF127-YVPEJ132M4,DSZKF127-YVPEJ160M4,DSZKF127-YVPEJ180M4,DSZKF127-YVPEJ200M4,DSZKF127-YVPEJ225M4,DSZKF127-YVPEJ250M4,DSZKF127-YVPEJ280M4,BKF127-Y112M4,BKF127-Y11KW,BKF127-Y132M4,BKF127-Y15KW,BKF127-Y160M4,BKF127-Y18.5KW,BKF127-Y180M4,BKF127-Y200M4,BKF127-Y225M4,BKF127-Y22KW,BKF127-Y250M4,BKF127-Y280M4,BKF127-Y30KW,BKF127-Y37KW,BKF127-Y45KW,BKF127-Y4KW,BKF127-Y5.5KW,BKF127-Y55KW,BKF127-Y7.5KW,BKF127-Y75KW,BKF127-YEJ112M4,BKF127-YEJ132M4,BKF127-YEJ160M4,BKF127-YEJ180M4,BKF127-YEJ200M4,BKF127-YEJ225M4,BKF127-YEJ250M4,BKF127-YEJ280M4,BKF127-YS112M4,BKF127-YS132M4,BKF127-YS160M4,BKF127-YS180M4,BKF127-YS200M4,BKF127-YS225M4,BKF127-YS250M4,BKF127-YS280M4,BKF127-YVP112M4,BKF127-YVP132M4,BKF127-YVP160M4,BKF127-YVP180M4,BKF127-YVP200M4,BKF127-YVP225M4,BKF127-YVP250M4,BKF127-YVP280M4,BKF127-YVPEJ112M4,BKF127-YVPEJ132M4,BKF127-YVPEJ160M4,BKF127-YVPEJ180M4,BKF127-YVPEJ200M4,BKF127-YVPEJ225M4,BKF127-YVPEJ250M4,BKF127-YVPEJ280M4,GKF127-Y112M4,GKF127-Y11KW,GKF127-Y132M4,GKF127-Y15KW,GKF127-Y160M4,GKF127-Y18.5KW,GKF127-Y180M4,GKF127-Y200M4,GKF127-Y225M4,GKF127-Y22KW,GKF127-Y250M4,GKF127-Y280M4,GKF127-Y30KW,GKF127-Y37KW,GKF127-Y45KW,GKF127-Y4KW,GKF127-Y5.5KW,GKF127-Y55KW,GKF127-Y7.5KW,GKF127-Y75KW,GKF127-YEJ112M4,GKF127-YEJ132M4,GKF127-YEJ160M4,GKF127-YEJ180M4,GKF127-YEJ200M4,GKF127-YEJ225M4,GKF127-YEJ250M4,GKF127-YEJ280M4,GKF127-YS112M4,GKF127-YS132M4,GKF127-YS160M4,GKF127-YS180M4,GKF127-YS200M4,GKF127-YS225M4,GKF127-YS250M4,GKF127-YS280M4,GKF127-YVP112M4,GKF127-YVP132M4,GKF127-YVP160M4,GKF127-YVP180M4,GKF127-YVP200M4,GKF127-YVP225M4,GKF127-YVP250M4,GKF127-YVP280M4,GKF127-YVPEJ112M4,GKF127-YVPEJ132M4,GKF127-YVPEJ160M4,GKF127-YVPEJ180M4,GKF127-YVPEJ200M4,GKF127-YVPEJ225M4,GKF127-YVPEJ250M4,GKF127-YVPEJ280M4,KCF127-Y112M4,KCF127-Y11KW,KCF127-Y132M4,KCF127-Y15KW,KCF127-Y160M4,KCF127-Y18.5KW,KCF127-Y180M4,KCF127-Y200M4,KCF127-Y225M4,KCF127-Y22KW,KCF127-Y250M4,KCF127-Y280M4,KCF127-Y30KW,KCF127-Y37KW,KCF127-Y45KW,KCF127-Y4KW,KCF127-Y5.5KW,KCF127-Y55KW,KCF127-Y7.5KW,KCF127-Y75KW,KCF127-YEJ112M4,KCF127-YEJ132M4,KCF127-YEJ160M4,KCF127-YEJ180M4,KCF127-YEJ200M4,KCF127-YEJ225M4,KCF127-YEJ250M4,KCF127-YEJ280M4,KCF127-YS112M4,KCF127-YS132M4,KCF127-YS160M4,KCF127-YS180M4,KCF127-YS200M4,KCF127-YS225M4,KCF127-YS250M4,KCF127-YS280M4,KCF127-YVP112M4,KCF127-YVP132M4,KCF127-YVP160M4,KCF127-YVP180M4,KCF127-YVP200M4,KCF127-YVP225M4,KCF127-YVP250M4,KCF127-YVP280M4,KCF127-YVPEJ112M4,KCF127-YVPEJ132M4,KCF127-YVPEJ160M4,KCF127-YVPEJ180M4,KCF127-YVPEJ200M4,KCF127-YVPEJ225M4,KCF127-YVPEJ250M4,KCF127-YVPEJ280M4,MTJF127-Y112M4,MTJF127-Y11KW,MTJF127-Y132M4,MTJF127-Y15KW,MTJF127-Y160M4,MTJF127-Y18.5KW,MTJF127-Y180M4,MTJF127-Y200M4,MTJF127-Y225M4,MTJF127-Y22KW,MTJF127-Y250M4,MTJF127-Y280M4,MTJF127-Y30KW,MTJF127-Y37KW,MTJF127-Y45KW,MTJF127-Y4KW,MTJF127-Y5.5KW,MTJF127-Y55KW,MTJF127-Y7.5KW,MTJF127-Y75KW,MTJF127-YEJ112M4,MTJF127-YEJ132M4,MTJF127-YEJ160M4,MTJF127-YEJ180M4,MTJF127-YEJ200M4,MTJF127-YEJ225M4,MTJF127-YEJ250M4,MTJF127-YEJ280M4,MTJF127-YS112M4,MTJF127-YS132M4,MTJF127-YS160M4,MTJF127-YS180M4,MTJF127-YS200M4,MTJF127-YS225M4,MTJF127-YS250M4,MTJF127-YS280M4,MTJF127-YVP112M4,MTJF127-YVP132M4,MTJF127-YVP160M4,MTJF127-YVP180M4,MTJF127-YVP200M4,MTJF127-YVP225M4,MTJF127-YVP250M4,MTJF127-YVP280M4,MTJF127-YVPEJ112M4,MTJF127-YVPEJ132M4,MTJF127-YVPEJ160M4,MTJF127-YVPEJ180M4,MTJF127-YVPEJ200M4,MTJF127-YVPEJ225M4,MTJF127-YVPEJ250M4,MTJF127-YVPEJ280M4,WXKF127-WSS112M4,WXKF127-WSS11KW,WXKF127-WSS132M4,WXKF127-WSS15KW,WXKF127-WSS160M4,WXKF127-WSS18.5KW,WXKF127-WSS180M4,WXKF127-WSS200M4,WXKF127-WSS225M4,WXKF127-WSS22KW,WXKF127-WSS250M4,WXKF127-WSS280M4,WXKF127-WSS30KW,WXKF127-WSS37KW,WXKF127-WSS45KW,WXKF127-WSS4KW,WXKF127-WSS5.5KW,WXKF127-WSS55KW,WXKF127-WSS7.5KW,WXKF127-WSS75KW,WXKF127-WSSB112M4,WXKF127-WSSB132M4,WXKF127-WSSB160M4,WXKF127-WSSB180M4,WXKF127-WSSB200M4,WXKF127-WSSB225M4,WXKF127-WSSB250M4,WXKF127-WSSB280M4,WXKF127-WSSVP112M4,WXKF127-WSSVP132M4,WXKF127-WSSVP160M4,WXKF127-WSSVP180M4,WXKF127-WSSVP200M4,WXKF127-WSSVP225M4,WXKF127-WSSVP250M4,WXKF127-WSSVP280M4,WXKF127-WSSVPB112M4,WXKF127-WSSVPB132M4,WXKF127-WSSVPB160M4,WXKF127-WSSVPB180M4,WXKF127-WSSVPB200M4,WXKF127-WSSVPB225M4,WXKF127-WSSVPB250M4,WXKF127-WSSVPB280M4。伺服電機減速機

KF127減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.78777p.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K127減速機
