KAF37減速機加電機重量：

KAF37減速機加0.12KW電機重量19.5KG，KAF37減速機加0.18KW電機重量20KG，KAF37減速機加0.25KW電機重量24KG，KAF37減速機加0.37KW電機重量24.5KG，KAF37減速機加0.55KW電機重量29KG，KAF37減速機加0.75KW電機重量30KG，KAF37減速機加1.1KW電機重量34KG，KAF37減速機加1.5KW電機重量37KG，KAF37減速機加2.2KW電機重量46KG，KAF37減速機加3KW電機重量49KG。直角減速機

KAF37減速機加油量：可加齒輪潤滑油

KAF37減速機M4安裝形式加1.4L，KAF37減速機M3安裝形式加1L，KAF37減速機M2安裝形式加1L，KAF37減速機M1安裝形式加0.5L，KAF37減速機M5安裝形式加1L，KAF37減速機M6安裝形式加1L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1- M6的減速機相應的標準參考潤滑油注入量值。

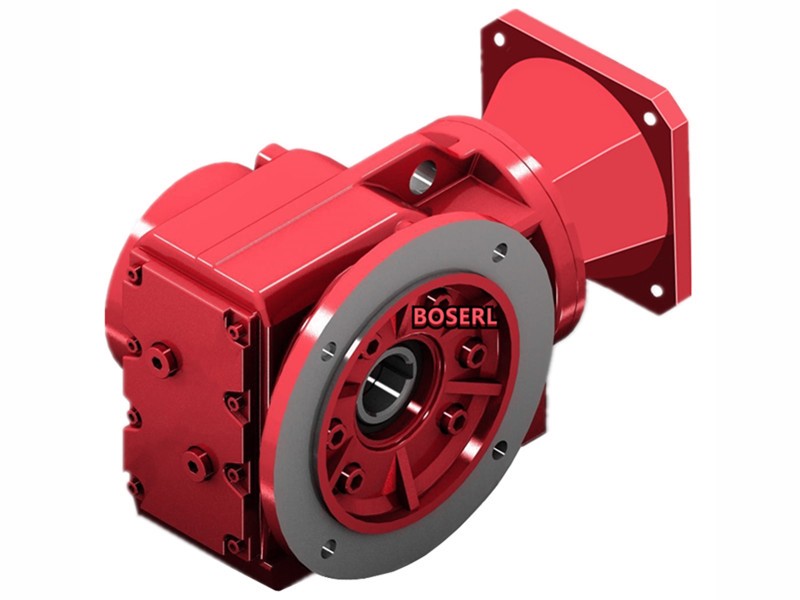

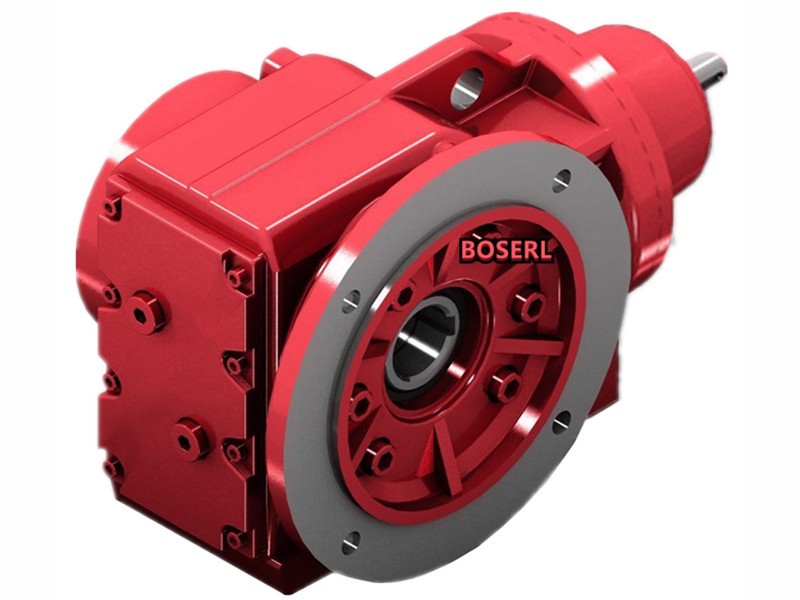

KAF37減速機實物圖：圖一為KAF37立式安裝形式直角空心軸螺旋錐齒輪減速機，圖二K37臥式安裝形式螺旋錐齒輪減速電機，圖三為KF37立式安裝形式實心軸輸出螺旋錐齒輪減速電機，圖四為KA37臥式安裝形式空心軸螺旋錐齒輪減速機。

KAF37減速機型號表示方法：

KAF37減速機型號結構KAF37-B0.75KW-4P-減速比-安裝形式-接線盒位置。

KAF37減速機性能參數表結構說明：Input Configuration代表輸入加置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF37，K37，KF37，KA37減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置加自鎖功能。

KAF37減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。二級減速機

KAF37減速機參數：

KAF37減速機輸出扭矩200N.m，195N.m，185N.m，180N.m，175N.m，165N.m，160N.m，155N.m，150N.m，145N.m，140N.m，125N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KAF37減速機減速比106.38比，97.81比，83.69比，72.54比，67.80比，58.60比，49.79比，44.46比，37.97比，35.57比，29.96比，28.83比，24.99比，23.36比，20.19比，17.15比，15.31比，13.08比，12.14比，10.49比，8.91比，7.96比，6.8比，6.37比，5.36比，3.98比

KAF37減速機輸出轉數13轉，14轉，17轉，19轉，21轉，24轉，28轉，31轉，37轉，39轉，47轉，49轉，56轉，60轉，69轉，82轉，91轉，107轉，115轉，133轉，157轉，176轉，206轉，220轉，261轉，352轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KAF37減速機電機可加單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KAF37加0.12KW，KAF37加0.18KW，KAF37加0.25KW，KAF37加0.37KW，KAF37加0.55KW，KAF37加0.75KW，KAF37加1.1KW，KAF37加1.5KW，KAF37加2.2KW，KAF37加3KW。

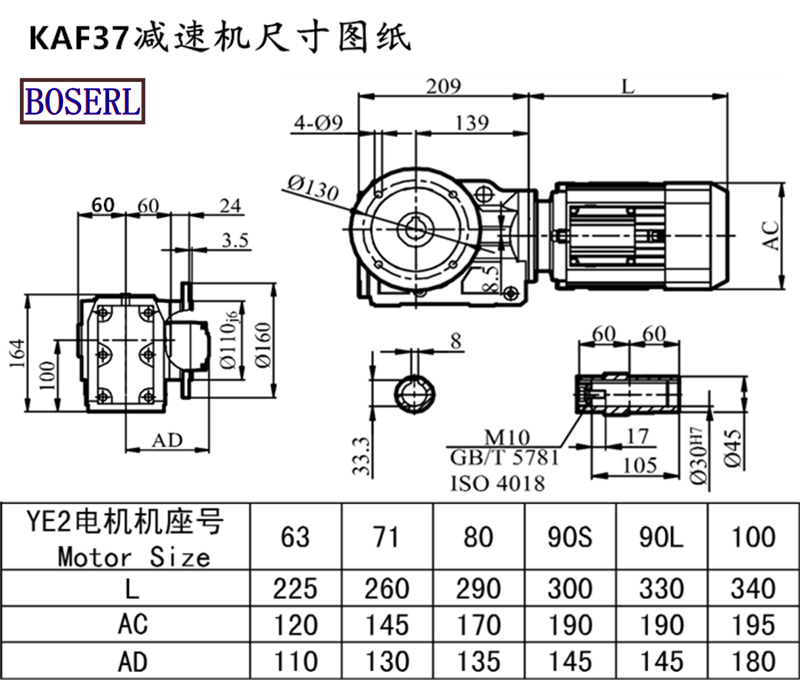

KAF37減速機外觀尺寸：輸出孔直徑Φ30+鍵3.3（可定做），高164*寬141.5（帶輸出法蘭）*長210

KAF37減速機型號：

KAF37AQA80,KAF37AQA100,KAF37AQA115,KAF37AQA140,KAF37AQA160,KAF37AQA190,KAF37AQH80,KAF37AQH100,KAF37AQH115,KAF37AQH140,KAF37AQH160,KAF37AQH190,JRTKAF37-Y0.12KW,JRTKAF37-Y0.18KW,JRTKAF37-Y0.25KW,JRTKAF37-Y0.AF37KW,JRTKAF37-Y0.55KW,JRTKAF37-Y0.75KW,JRTKAF37-Y1.1KW,JRTKAF37-Y1.5KW,JRTKAF37-Y100M4,JRTKAF37-Y2.2KW,JRTKAF37-Y3KW,JRTKAF37-Y63M4,JRTKAF37-Y71M4,JRTKAF37-Y80M4,JRTKAF37-Y90M4,JRTKAF37-YEJ100M4,JRTKAF37-YEJ63M4,JRTKAF37-YEJ71M4,JRTKAF37-YEJ80M4,JRTKAF37-YEJ90M4,JRTKAF37-YS100M4,JRTKAF37-YS63M4,JRTKAF37-YS71M4,JRTKAF37-YS80M4,JRTKAF37-YS90M4,JRTKAF37-YVP100M4,JRTKAF37-YVP63M4,JRTKAF37-YVP71M4,JRTKAF37-YVP80M4,JRTKAF37-YVP90M4,JRTKAF37-YVPEJ100M4,JRTKAF37-YVPEJ63M4,JRTKAF37-YVPEJ71M4,JRTKAF37-YVPEJ80M4,JRTKAF37-YVPEJ90M4,EWKAF37-Y0.12KW,EWKAF37-Y0.18KW,EWKAF37-Y0.25KW,EWKAF37-Y0.AF37KW,EWKAF37-Y0.55KW,EWKAF37-Y0.75KW,EWKAF37-Y1.1KW,EWKAF37-Y1.5KW,EWKAF37-Y100M4,EWKAF37-Y2.2KW,EWKAF37-Y3KW,EWKAF37-Y63M4,EWKAF37-Y71M4,EWKAF37-Y80M4,EWKAF37-Y90M4,EWKAF37-YEJ100M4,EWKAF37-YEJ63M4,EWKAF37-YEJ71M4,EWKAF37-YEJ80M4,EWKAF37-YEJ90M4,EWKAF37-YS100M4,EWKAF37-YS63M4,EWKAF37-YS71M4,EWKAF37-YS80M4,EWKAF37-YS90M4,EWKAF37-YVP100M4,EWKAF37-YVP63M4,EWKAF37-YVP71M4,EWKAF37-YVP80M4,EWKAF37-YVP90M4,EWKAF37-YVPEJ100M4,EWKAF37-YVPEJ63M4,EWKAF37-YVPEJ71M4,EWKAF37-YVPEJ80M4,EWKAF37-YVPEJ90M4,SLKAF37-Y0.12KW,SLKAF37-Y0.18KW,SLKAF37-Y0.25KW,SLKAF37-Y0.AF37KW,SLKAF37-Y0.55KW,SLKAF37-Y0.75KW,SLKAF37-Y1.1KW,SLKAF37-Y1.5KW,SLKAF37-Y100M4,SLKAF37-Y2.2KW,SLKAF37-Y3KW,SLKAF37-Y63M4,SLKAF37-Y71M4,SLKAF37-Y80M4,SLKAF37-Y90M4,SLKAF37-YEJ100M4,SLKAF37-YEJ63M4,SLKAF37-YEJ71M4,SLKAF37-YEJ80M4,SLKAF37-YEJ90M4,SLKAF37-YS100M4,SLKAF37-YS63M4,SLKAF37-YS71M4,SLKAF37-YS80M4,SLKAF37-YS90M4,SLKAF37-YVP100M4,SLKAF37-YVP63M4,SLKAF37-YVP71M4,SLKAF37-YVP80M4,SLKAF37-YVP90M4,SLKAF37-YVPEJ100M4,SLKAF37-YVPEJ63M4,SLKAF37-YVPEJ71M4,SLKAF37-YVPEJ80M4,SLKAF37-YVPEJ90M4,DSZKAF37-Y0.12KW,DSZKAF37-Y0.18KW,DSZKAF37-Y0.25KW,DSZKAF37-Y0.AF37KW,DSZKAF37-Y0.55KW,DSZKAF37-Y0.75KW,DSZKAF37-Y1.1KW,DSZKAF37-Y1.5KW,DSZKAF37-Y100M4,DSZKAF37-Y2.2KW,DSZKAF37-Y3KW,DSZKAF37-Y63M4,DSZKAF37-Y71M4,DSZKAF37-Y80M4,DSZKAF37-Y90M4,DSZKAF37-YEJ100M4,DSZKAF37-YEJ63M4,DSZKAF37-YEJ71M4,DSZKAF37-YEJ80M4,DSZKAF37-YEJ90M4,DSZKAF37-YS100M4,DSZKAF37-YS63M4,DSZKAF37-YS71M4,DSZKAF37-YS80M4,DSZKAF37-YS90M4,DSZKAF37-YVP100M4,DSZKAF37-YVP63M4,DSZKAF37-YVP71M4,DSZKAF37-YVP80M4,DSZKAF37-YVP90M4,DSZKAF37-YVPEJ100M4,DSZKAF37-YVPEJ63M4,DSZKAF37-YVPEJ71M4,DSZKAF37-YVPEJ80M4,DSZKAF37-YVPEJ90M4,BKAF37-Y0.12KW,BKAF37-Y0.18KW,BKAF37-Y0.25KW,BKAF37-Y0.AF37KW,BKAF37-Y0.55KW,BKAF37-Y0.75KW,BKAF37-Y1.1KW,BKAF37-Y1.5KW,BKAF37-Y100M4,BKAF37-Y2.2KW,BKAF37-Y3KW,BKAF37-Y63M4,BKAF37-Y71M4,BKAF37-Y80M4,BKAF37-Y90M4,BKAF37-YEJ100M4,BKAF37-YEJ63M4,BKAF37-YEJ71M4,BKAF37-YEJ80M4,BKAF37-YEJ90M4,BKAF37-YS100M4,BKAF37-YS63M4,BKAF37-YS71M4,BKAF37-YS80M4,BKAF37-YS90M4,BKAF37-YVP100M4,BKAF37-YVP63M4,BKAF37-YVP71M4,BKAF37-YVP80M4,BKAF37-YVP90M4,BKAF37-YVPEJ100M4,BKAF37-YVPEJ63M4,BKAF37-YVPEJ71M4,BKAF37-YVPEJ80M4,BKAF37-YVPEJ90M4,GKAF37-Y0.12KW,GKAF37-Y0.18KW,GKAF37-Y0.25KW,GKAF37-Y0.AF37KW,GKAF37-Y0.55KW,GKAF37-Y0.75KW,GKAF37-Y1.1KW,GKAF37-Y1.5KW,GKAF37-Y100M4,GKAF37-Y2.2KW,GKAF37-Y3KW,GKAF37-Y63M4,GKAF37-Y71M4,GKAF37-Y80M4,GKAF37-Y90M4,GKAF37-YEJ100M4,GKAF37-YEJ63M4,GKAF37-YEJ71M4,GKAF37-YEJ80M4,GKAF37-YEJ90M4,GKAF37-YS100M4,GKAF37-YS63M4,GKAF37-YS71M4,GKAF37-YS80M4,GKAF37-YS90M4,GKAF37-YVP100M4,GKAF37-YVP63M4,GKAF37-YVP71M4,GKAF37-YVP80M4,GKAF37-YVP90M4,GKAF37-YVPEJ100M4,GKAF37-YVPEJ63M4,GKAF37-YVPEJ71M4,GKAF37-YVPEJ80M4,GKAF37-YVPEJ90M4,KCAF37-Y0.12KW,KCAF37-Y0.18KW,KCAF37-Y0.25KW,KCAF37-Y0.AF37KW,KCAF37-Y0.55KW,KCAF37-Y0.75KW,KCAF37-Y1.1KW,KCAF37-Y1.5KW,KCAF37-Y100M4,KCAF37-Y2.2KW,KCAF37-Y3KW,KCAF37-Y63M4,KCAF37-Y71M4,KCAF37-Y80M4,KCAF37-Y90M4,KCAF37-YEJ100M4,KCAF37-YEJ63M4,KCAF37-YEJ71M4,KCAF37-YEJ80M4,KCAF37-YEJ90M4,KCAF37-YS100M4,KCAF37-YS63M4,KCAF37-YS71M4,KCAF37-YS80M4,KCAF37-YS90M4,KCAF37-YVP100M4,KCAF37-YVP63M4,KCAF37-YVP71M4,KCAF37-YVP80M4,KCAF37-YVP90M4,KCAF37-YVPEJ100M4,KCAF37-YVPEJ63M4,KCAF37-YVPEJ71M4,KCAF37-YVPEJ80M4,KCAF37-YVPEJ90M4,MTJAF37-Y0.12KW,MTJAF37-Y0.18KW,MTJAF37-Y0.25KW,MTJAF37-Y0.AF37KW,MTJAF37-Y0.55KW,MTJAF37-Y0.75KW,MTJAF37-Y1.1KW,MTJAF37-Y1.5KW,MTJAF37-Y100M4,MTJAF37-Y2.2KW,MTJAF37-Y3KW,MTJAF37-Y63M4,MTJAF37-Y71M4,MTJAF37-Y80M4,MTJAF37-Y90M4,MTJAF37-YEJ100M4,MTJAF37-YEJ63M4,MTJAF37-YEJ71M4,MTJAF37-YEJ80M4,MTJAF37-YEJ90M4,MTJAF37-YS100M4,MTJAF37-YS63M4,MTJAF37-YS71M4,MTJAF37-YS80M4,MTJAF37-YS90M4,MTJAF37-YVP100M4,MTJAF37-YVP63M4,MTJAF37-YVP71M4,MTJAF37-YVP80M4,MTJAF37-YVP90M4,MTJAF37-YVPEJ100M4,MTJAF37-YVPEJ63M4,MTJAF37-YVPEJ71M4,MTJAF37-YVPEJ80M4,MTJAF37-YVPEJ90M4,WXKAF37-WSS0.12KW,WXKAF37-WSS0.18KW,WXKAF37-WSS0.25KW,WXKAF37-WSS0.AF37KW,WXKAF37-WSS0.55KW,WXKAF37-WSS0.75KW,WXKAF37-WSS1.1KW,WXKAF37-WSS1.5KW,WXKAF37-WSS100M4,WXKAF37-WSS2.2KW,WXKAF37-WSS3KW,WXKAF37-WSS63M4,WXKAF37-WSS71M4,WXKAF37-WSS80M4,WXKAF37-WSS90M4,WXKAF37-WSSB100M4,WXKAF37-WSSB63M4,WXKAF37-WSSB71M4,WXKAF37-WSSB80M4,WXKAF37-WSSB90M4,WXKAF37-WSSVP100M4,WXKAF37-WSSVP63M4,WXKAF37-WSSVP71M4,WXKAF37-WSSVP80M4,WXKAF37-WSSVP90M4,WXKAF37-WSSVPB100M4,WXKAF37-WSSVPB63M4,WXKAF37-WSSVPB71M4,WXKAF37-WSSVPB80M4,WXKAF37-WSSVPB90M4。
