FA127減速機重量：FA127減速機重量769公斤，F(xiàn)A127減速機與電機重量分別如下

FA127減速機與7.5KW電機重量772公斤，F(xiàn)A127減速機與11KW電機重量814公斤，F(xiàn)A127減速機與15KW電機重量834公斤，F(xiàn)A127減速機與18.5KW電機重量871公斤，F(xiàn)A127減速機與22KW電機重量884公斤，F(xiàn)A127減速機與30KW電機重量952公斤，F(xiàn)A127減速機與37KW電機重量999公斤，F(xiàn)A127減速機與45KW電機重量1034公斤，F(xiàn)A127減速機與55KW電機重量1119公斤，F(xiàn)A127減速機與75KW電機重量1259公斤，F(xiàn)A127減速機與90KW電機重量1369公斤。分體減速機電機

FA127減速機加油量：可加齒輪油

FA127減速機M3方式安裝加34升，F(xiàn)A127減速機M2方式安裝加54.5升，F(xiàn)A127減速機M1方式安裝加39升，F(xiàn)A127減速機M4方式安裝加61升，F(xiàn)A127減速機M5方式安裝加45升，F(xiàn)A127減速機M6方式安裝加46.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時，您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

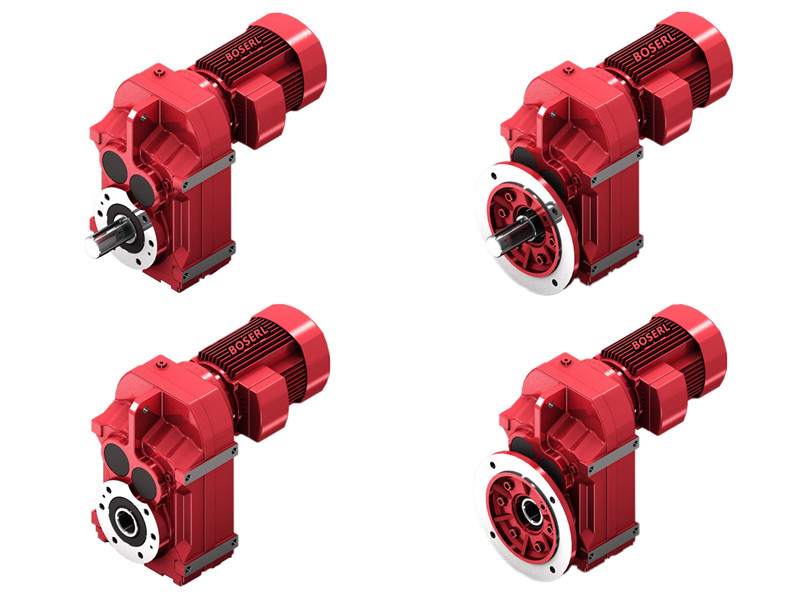

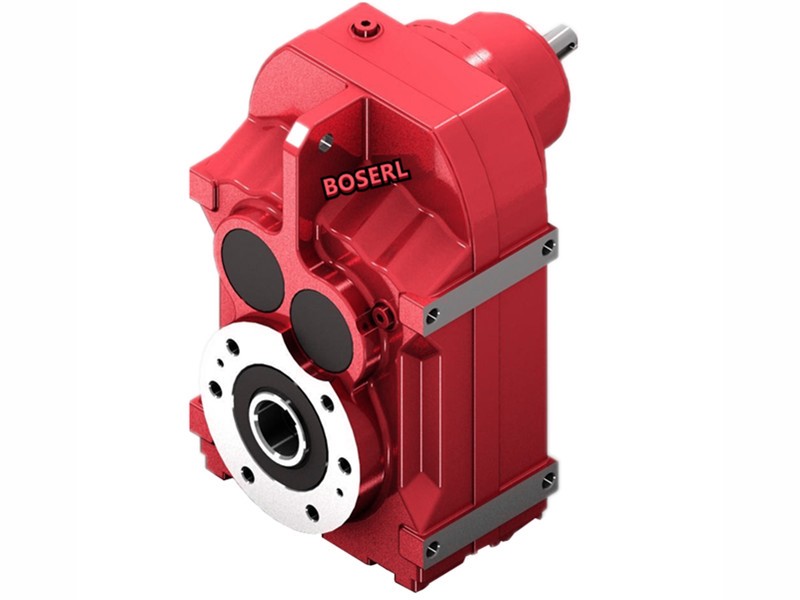

FA127減速機實物圖：圖一為FA127臥式孔輸出平行軸減速機，圖二F127底腳方式安裝軸輸出平行軸減速機，圖三為FF127立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF127立式法蘭孔輸出平行軸斜齒輪減速機。

FA127減速機型號表示方法：

FA127減速機型號結構FA127-B55KW-4P-減速比-方式安裝-接線盒位置。

FA127減速機性能參數表結構說明：HR手動釋放裝置，HF手動釋放裝置與自鎖功能，F(xiàn)A127，F(xiàn)127，F(xiàn)F127，F(xiàn)AF127減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1，min代表輸出轉數，Nm代表輸出扭矩。

FA127減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。齒輪減速機

FA127減速機參數：

FA127減速機減速比1:170，1:153，1:125，1:114，1:98，1:87，1:75，1:70，1:63，1:55，1:48，1:42，1:37，1:31，1:25，1:26，1:24，1:21，1:18，1:16，1:14，1:12，1:10，1:8，1:7，1:6，1:5，1:4

FA127減速機輸出轉數8.2轉，9.1轉，11轉，12轉，14轉，16轉，19轉，20轉，22轉，25轉，29轉，33轉，38轉，45轉，55轉，52轉，57轉，65轉，74轉，86轉，96轉，112轉，137轉，158轉，178轉，206轉，254轉，299轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA127減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA127與7.5KW，F(xiàn)A127與11KW，F(xiàn)A127與15KW，F(xiàn)A127與18.5KW，F(xiàn)A127與22KW，F(xiàn)A127與30KW，F(xiàn)A127與37KW，F(xiàn)A127與45KW，F(xiàn)A127與55KW，F(xiàn)A127與75KW，F(xiàn)A127與90KW。

FA127減速機輸出扭矩12000N.m，11000N.m，10000N.m，9500N.m，8500N.m，7000N.m，6000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FA127減速機安裝尺寸：高856*寬530*長585

FA127減速機型號：FA127AQA80,FA127AQA100,FA127AQA115,FA127AQA140,FA127AQA160,FA127AQA190,FA127AQH80,FA127AQH100,FA127AQH115,FA127AQH140,FA127AQH160,FA127AQH190,JRTFA127-Y11KW,JRTFA127-Y132M4,JRTFA127-Y15KW,JRTFA127-Y160M4,JRTFA127-Y18.5KW,JRTFA127-Y180M4,JRTFA127-Y200M4,JRTFA127-Y225M4,JRTFA127-Y22KW,JRTFA127-Y250M4,JRTFA127-Y280M4,JRTFA127-Y30KW,JRTFA127-Y37KW,JRTFA127-Y45KW,JRTFA127-Y55KW,JRTFA127-Y7.5KW,JRTFA127-Y75KW,JRTFA127-Y90KW,JRTFA127-YEJ132M4,JRTFA127-YEJ160M4,JRTFA127-YEJ180M4,JRTFA127-YEJ200M4,JRTFA127-YEJ225M4,JRTFA127-YEJ250M4,JRTFA127-YEJ280M4,JRTFA127-YS132M4,JRTFA127-YS160M4,JRTFA127-YS180M4,JRTFA127-YS200M4,JRTFA127-YS225M4,JRTFA127-YS250M4,JRTFA127-YS280M4,JRTFA127-YVP132M4,JRTFA127-YVP160M4,JRTFA127-YVP180M4,JRTFA127-YVP200M4,JRTFA127-YVP225M4,JRTFA127-YVP250M4,JRTFA127-YVP280M4,JRTFA127-YVPEJ132M4,JRTFA127-YVPEJ160M4,JRTFA127-YVPEJ180M4,JRTFA127-YVPEJ200M4,JRTFA127-YVPEJ225M4,JRTFA127-YVPEJ250M4,JRTFA127-YVPEJ280M4,EWFA127-Y11KW,EWFA127-Y132M4,EWFA127-Y15KW,EWFA127-Y160M4,EWFA127-Y18.5KW,EWFA127-Y180M4,EWFA127-Y200M4,EWFA127-Y225M4,EWFA127-Y22KW,EWFA127-Y250M4,EWFA127-Y280M4,EWFA127-Y30KW,EWFA127-Y37KW,EWFA127-Y45KW,EWFA127-Y55KW,EWFA127-Y7.5KW,EWFA127-Y75KW,EWFA127-Y90KW,EWFA127-YEJ132M4,EWFA127-YEJ160M4,EWFA127-YEJ180M4,EWFA127-YEJ200M4,EWFA127-YEJ225M4,EWFA127-YEJ250M4,EWFA127-YEJ280M4,EWFA127-YS132M4,EWFA127-YS160M4,EWFA127-YS180M4,EWFA127-YS200M4,EWFA127-YS225M4,EWFA127-YS250M4,EWFA127-YS280M4,EWFA127-YVP132M4,EWFA127-YVP160M4,EWFA127-YVP180M4,EWFA127-YVP200M4,EWFA127-YVP225M4,EWFA127-YVP250M4,EWFA127-YVP280M4,EWFA127-YVPEJ132M4,EWFA127-YVPEJ160M4,EWFA127-YVPEJ180M4,EWFA127-YVPEJ200M4,EWFA127-YVPEJ225M4,EWFA127-YVPEJ250M4,EWFA127-YVPEJ280M4,SLFA127-Y11KW,SLFA127-Y132M4,SLFA127-Y15KW,SLFA127-Y160M4,SLFA127-Y18.5KW,SLFA127-Y180M4,SLFA127-Y200M4,SLFA127-Y225M4,SLFA127-Y22KW,SLFA127-Y250M4,SLFA127-Y280M4,SLFA127-Y30KW,SLFA127-Y37KW,SLFA127-Y45KW,SLFA127-Y55KW,SLFA127-Y7.5KW,SLFA127-Y75KW,SLFA127-Y90KW,SLFA127-YEJ132M4,SLFA127-YEJ160M4,SLFA127-YEJ180M4,SLFA127-YEJ200M4,SLFA127-YEJ225M4,SLFA127-YEJ250M4,SLFA127-YEJ280M4,SLFA127-YS132M4,SLFA127-YS160M4,SLFA127-YS180M4,SLFA127-YS200M4,SLFA127-YS225M4,SLFA127-YS250M4,SLFA127-YS280M4,SLFA127-YVP132M4,SLFA127-YVP160M4,SLFA127-YVP180M4,SLFA127-YVP200M4,SLFA127-YVP225M4,SLFA127-YVP250M4,SLFA127-YVP280M4,SLFA127-YVPEJ132M4,SLFA127-YVPEJ160M4,SLFA127-YVPEJ180M4,SLFA127-YVPEJ200M4,SLFA127-YVPEJ225M4,SLFA127-YVPEJ250M4,SLFA127-YVPEJ280M4,DSZFA127-Y11KW,DSZFA127-Y132M4,DSZFA127-Y15KW,DSZFA127-Y160M4,DSZFA127-Y18.5KW,DSZFA127-Y180M4,DSZFA127-Y200M4,DSZFA127-Y225M4,DSZFA127-Y22KW,DSZFA127-Y250M4,DSZFA127-Y280M4,DSZFA127-Y30KW,DSZFA127-Y37KW,DSZFA127-Y45KW,DSZFA127-Y55KW,DSZFA127-Y7.5KW,DSZFA127-Y75KW,DSZFA127-Y90KW,DSZFA127-YEJ132M4,DSZFA127-YEJ160M4,DSZFA127-YEJ180M4,DSZFA127-YEJ200M4,DSZFA127-YEJ225M4,DSZFA127-YEJ250M4,DSZFA127-YEJ280M4,DSZFA127-YS132M4,DSZFA127-YS160M4,DSZFA127-YS180M4,DSZFA127-YS200M4,DSZFA127-YS225M4,DSZFA127-YS250M4,DSZFA127-YS280M4,DSZFA127-YVP132M4,DSZFA127-YVP160M4,DSZFA127-YVP180M4,DSZFA127-YVP200M4,DSZFA127-YVP225M4,DSZFA127-YVP250M4,DSZFA127-YVP280M4,DSZFA127-YVPEJ132M4,DSZFA127-YVPEJ160M4,DSZFA127-YVPEJ180M4,DSZFA127-YVPEJ200M4,DSZFA127-YVPEJ225M4,DSZFA127-YVPEJ250M4,DSZFA127-YVPEJ280M4,BFA127-Y11KW,BFA127-Y132M4,BFA127-Y15KW,BFA127-Y160M4,BFA127-Y18.5KW,BFA127-Y180M4,BFA127-Y200M4,BFA127-Y225M4,BFA127-Y22KW,BFA127-Y250M4,BFA127-Y280M4,BFA127-Y30KW,BFA127-Y37KW,BFA127-Y45KW,BFA127-Y55KW,BFA127-Y7.5KW,BFA127-Y75KW,BFA127-Y90KW,BFA127-YEJ132M4,BFA127-YEJ160M4,BFA127-YEJ180M4,BFA127-YEJ200M4,BFA127-YEJ225M4,BFA127-YEJ250M4,BFA127-YEJ280M4,BFA127-YS132M4,BFA127-YS160M4,BFA127-YS180M4,BFA127-YS200M4,BFA127-YS225M4,BFA127-YS250M4,BFA127-YS280M4,BFA127-YVP132M4,BFA127-YVP160M4,BFA127-YVP180M4,BFA127-YVP200M4,BFA127-YVP225M4,BFA127-YVP250M4,BFA127-YVP280M4,BFA127-YVPEJ132M4,BFA127-YVPEJ160M4,BFA127-YVPEJ180M4,BFA127-YVPEJ200M4,BFA127-YVPEJ225M4,BFA127-YVPEJ250M4,BFA127-YVPEJ280M4,GFA127-Y11KW,GFA127-Y132M4,GFA127-Y15KW,GFA127-Y160M4,GFA127-Y18.5KW,GFA127-Y180M4,GFA127-Y200M4,GFA127-Y225M4,GFA127-Y22KW,GFA127-Y250M4,GFA127-Y280M4,GFA127-Y30KW,GFA127-Y37KW,GFA127-Y45KW,GFA127-Y55KW,GFA127-Y7.5KW,GFA127-Y75KW,GFA127-Y90KW,GFA127-YEJ132M4,GFA127-YEJ160M4,GFA127-YEJ180M4,GFA127-YEJ200M4,GFA127-YEJ225M4,GFA127-YEJ250M4,GFA127-YEJ280M4,GFA127-YS132M4,GFA127-YS160M4,GFA127-YS180M4,GFA127-YS200M4,GFA127-YS225M4,GFA127-YS250M4,GFA127-YS280M4,GFA127-YVP132M4,GFA127-YVP160M4,GFA127-YVP180M4,GFA127-YVP200M4,GFA127-YVP225M4,GFA127-YVP250M4,GFA127-YVP280M4,GFA127-YVPEJ132M4,GFA127-YVPEJ160M4,GFA127-YVPEJ180M4,GFA127-YVPEJ200M4,GFA127-YVPEJ225M4,GFA127-YVPEJ250M4,GFA127-YVPEJ280M4,FCA127-Y11KW,FCA127-Y132M4,FCA127-Y15KW,FCA127-Y160M4,FCA127-Y18.5KW,FCA127-Y180M4,FCA127-Y200M4,FCA127-Y225M4,FCA127-Y22KW,FCA127-Y250M4,FCA127-Y280M4,FCA127-Y30KW,FCA127-Y37KW,FCA127-Y45KW,FCA127-Y55KW,FCA127-Y7.5KW,FCA127-Y75KW,FCA127-Y90KW,FCA127-YEJ132M4,FCA127-YEJ160M4,FCA127-YEJ180M4,FCA127-YEJ200M4,FCA127-YEJ225M4,FCA127-YEJ250M4,FCA127-YEJ280M4,FCA127-YS132M4,FCA127-YS160M4,FCA127-YS180M4,FCA127-YS200M4,FCA127-YS225M4,FCA127-YS250M4,FCA127-YS280M4,FCA127-YVP132M4,FCA127-YVP160M4,FCA127-YVP180M4,FCA127-YVP200M4,FCA127-YVP225M4,FCA127-YVP250M4,FCA127-YVP280M4,FCA127-YVPEJ132M4,FCA127-YVPEJ160M4,FCA127-YVPEJ180M4,FCA127-YVPEJ200M4,FCA127-YVPEJ225M4,FCA127-YVPEJ250M4,FCA127-YVPEJ280M4,MTPA127-Y11KW,MTPA127-Y132M4,MTPA127-Y15KW,MTPA127-Y160M4,MTPA127-Y18.5KW,MTPA127-Y180M4,MTPA127-Y200M4,MTPA127-Y225M4,MTPA127-Y22KW,MTPA127-Y250M4,MTPA127-Y280M4,MTPA127-Y30KW,MTPA127-Y37KW,MTPA127-Y45KW,MTPA127-Y55KW,MTPA127-Y7.5KW,MTPA127-Y75KW,MTPA127-Y90KW,MTPA127-YEJ132M4,MTPA127-YEJ160M4,MTPA127-YEJ180M4,MTPA127-YEJ200M4,MTPA127-YEJ225M4,MTPA127-YEJ250M4,MTPA127-YEJ280M4,MTPA127-YS132M4,MTPA127-YS160M4,MTPA127-YS180M4,MTPA127-YS200M4,MTPA127-YS225M4,MTPA127-YS250M4,MTPA127-YS280M4,MTPA127-YVP132M4,MTPA127-YVP160M4,MTPA127-YVP180M4,MTPA127-YVP200M4,MTPA127-YVP225M4,MTPA127-YVP250M4,MTPA127-YVP280M4,MTPA127-YVPEJ132M4,MTPA127-YVPEJ160M4,MTPA127-YVPEJ180M4,MTPA127-YVPEJ200M4,MTPA127-YVPEJ225M4,MTPA127-YVPEJ250M4,MTPA127-YVPEJ280M4,WXFA127-WSS11KW,WXFA127-WSS132M4,WXFA127-WSS15KW,WXFA127-WSS160M4,WXFA127-WSS18.5KW,WXFA127-WSS180M4,WXFA127-WSS200M4,WXFA127-WSS225M4,WXFA127-WSS22KW,WXFA127-WSS250M4,WXFA127-WSS280M4,WXFA127-WSS30KW,WXFA127-WSS37KW,WXFA127-WSS45KW,WXFA127-WSS55KW,WXFA127-WSS7.5KW,WXFA127-WSS75KW,WXFA127-WSS90KW,WXFA127-WSSB132M4,WXFA127-WSSB160M4,WXFA127-WSSB180M4,WXFA127-WSSB200M4,WXFA127-WSSB225M4,WXFA127-WSSB250M4,WXFA127-WSSB280M4,WXFA127-WSSVP132M4,WXFA127-WSSVP160M4,WXFA127-WSSVP180M4,WXFA127-WSSVP200M4,WXFA127-WSSVP225M4,WXFA127-WSSVP250M4,WXFA127-WSSVP280M4,WXFA127-WSSVPB132M4,WXFA127-WSSVPB160M4,WXFA127-WSSVPB180M4,WXFA127-WSSVPB200M4,WXFA127-WSSVPB225M4,WXFA127-WSSVPB250M4,WXFA127-WSSVPB280M4。

FA127減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.78777p.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F127減速機
